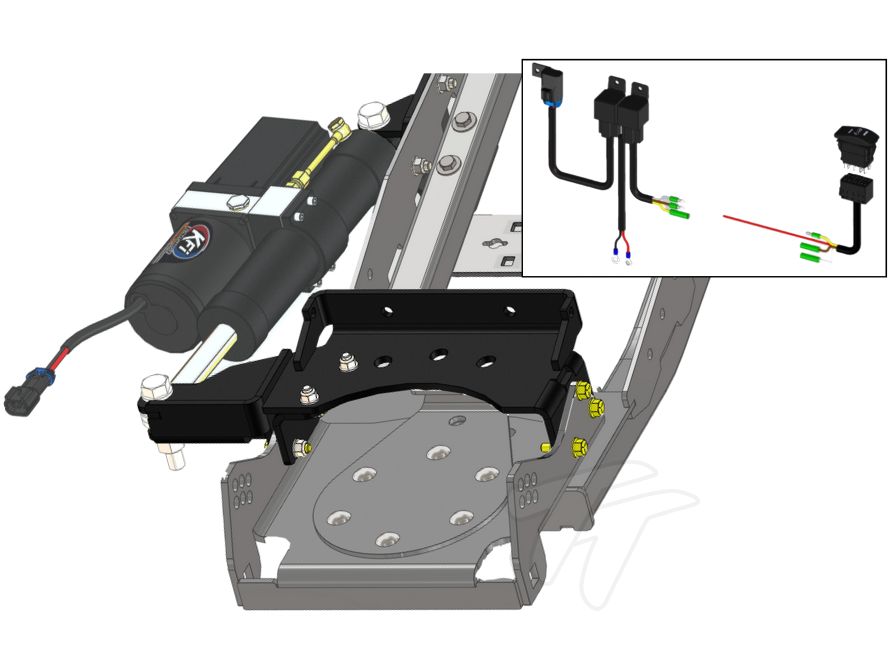

Have you ever been plowing snow sitting inside your cab and needed to rotate the blade, but you didn't want to get out into the cold to rotate it? The all NEW UTV Plow Actuator Kit is your solution! The KFI Actuator kit is a hydraulic pivot that allows you to rotate the blade from side to side while staying in the comfort of your cab. There is no need for extra parts because the KFI Plow Actuator will mount onto your current KFI UTV tubes.

NOTE: THIS KIT WILL NOT WORK WITH TRACKS; electrical installation required to connect wiring harness to vehicle's electrical system (may vary per model)

• KFI Hydraulic Actuator #ACT203
• UTV Actuator Brackets (select on checkout):
  • #105895 (old w/round push tubes)
  • #106305 (new w/square push tubes)
• Actuator Wiring Harness #106940
• Complete Installation Hardware
• Installation Manuals

Specifications:

• Specifically designed for use with KFI UTV Tubes #105635 OR #106300
• KFI Electric (12 volt) over Hydraulic Cylinder
• Complete wiring kit with Carling Technologies Two-Way Dash Rocker Switch (blue LED illuminated)
• 1 Year Limited KFI Warranty
• Rotates up to full 25 degrees in both directions
• Does NOT include the Push Tube System (sold separately)
• Powder Coated TOUGH

NOTE: Failing to follow the below safety rules will greatly increase the chances of damaging your plow system, machine and/or winch (if applicable). KFI will not be liable for any bending of materials as it is not caused by imperfections or defects in the material but by failing to follow these safety rules:

• Do not exceed 5 MPH, even with the blade raised.
• Make sure that all nuts and bolts are tightened per installation instructions.
• Never operate this KFI product with missing or damaged parts.
• Drive slowly over bumpy and rough terrain, driving fast could cause damage to winch (if applicable) or plow.
• Never raise the plow above point of contact as it could cause damage to machine or winch (if applicable).
• Always perform regular inspections and maintenance on plow system and hardware before use.
• Operate with extreme caution on slopes, steep grades, and rough terrain.
• Be aware of any possible hidden objects under the snow.
• Do not ram the blade into the snow pile.
